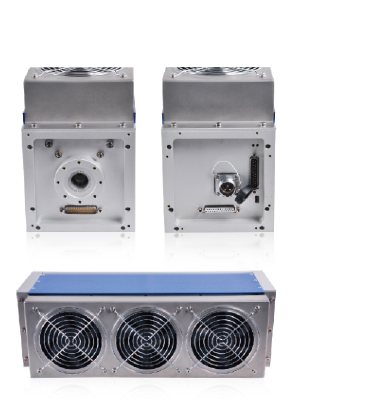

Alignment-free intergrated fiber laser unit/fiber laser/laser unit

Alignment-free intergrated fiber laser unit/fiber laser/laser unit

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Ningbo/Shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-01-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Zhejiang, China
  • Brand Name:  TiHi
  • Model Number:  GTL

Product Description


Parameters

Unit

GQM-020-0-B

GQM-030-0-B

Polaration:

/

Random

Random

Central Emission Wavelength:

nm

1064±3

1064±3

Emission Bandwidth:

nm

<3

<3

Nominal Average Output Power:

W

20±10.5

20±10.5

Output Power Tunability:

%

10-100

10-100

Beam Quality:

<1.6

<1.6

Operating Voltage:

V

24DC

24DC

Max. Power Consumption:

W

110±10

150±15

Cooling Method:

/

Air cooling

Air cooling

Repatation Frenquency:

kHz

20-80

30-80

Working Temperature:

0-40

0-40

Dimension(W*H*D)

MM

134*190*410

134*190*410

Net Weight:

KG

9

9

Products Advangtage:

1. High Efficiency

2.High Beam Quality

3.Fibre Delivery Output

4.Maintenance-free.

Packaging

Size

134(L) * 190 (W) * 410(D)

Weight

9kgs

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

About Us

ZheJiang TiHi Laser Equipment Co.,ltd is a hightech enterprise which devoted to the researching,producing and selling laser equipments. And our technique team is under the leading of two Doctors who are well -experienced in fiber laser field, and a strong sales team is always ready to provide the most comprehensive pre-sales support and service. Our products mainly include fiber laser marking machine, laser cutting machine and laser welding machine, which are highly used in the scope of industry of hardware, motor fittings, sheet metal cutting, sanitary, garments&leather, glasses,jewelry and so on...

With the superfine laser products, price and services,our company is expanding to international markets. Our company’s slogan is simple:to sell our machines at the most competitive price to our worldwide customers, and provided 24hour well-responsed services after sale. Always higher quality is our forever goal.


  • Place of Origin:  Zhejiang, China
  • Brand Name:  TiHi
  • Model Number:  GTL

Product Description


Parameters

Unit

GQM-020-0-B

GQM-030-0-B

Polaration:

/

Random

Random

Central Emission Wavelength:

nm

1064±3

1064±3

Emission Bandwidth:

nm

<3

<3

Nominal Average Output Power:

W

20±10.5

20±10.5

Output Power Tunability:

%

10-100

10-100

Beam Quality:

<1.6

<1.6

Operating Voltage:

V

24DC

24DC

Max. Power Consumption:

W

110±10

150±15

Cooling Method:

/

Air cooling

Air cooling

Repatation Frenquency:

kHz

20-80

30-80

Working Temperature:

0-40

0-40

Dimension(W*H*D)

MM

134*190*410

134*190*410

Net Weight:

KG

9

9


Packaging

Size

134(L) * 190 (W) * 410(D)

Weight

9kgs

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
