Fiber laser welding machine

Fiber laser welding machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Ningbo/Shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2013-01-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Zhejiang, China
  • Brand Name:  TiHi

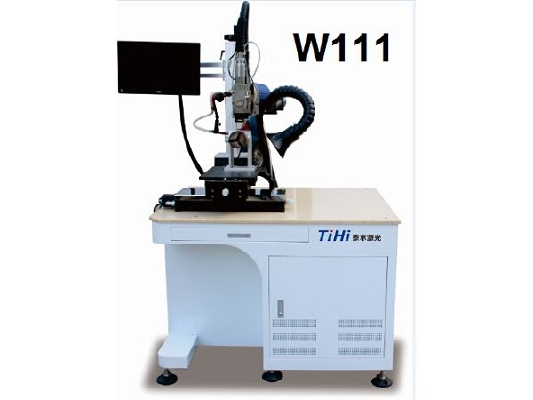

  • Model Number:  W111

Product Description

Product Application

Widely apply in industry of machinery, motor fitting, sanitary, hardware, electronic components, metal arts and battery.

Technical Parameter for W111

Model No.:

W111-200

W111-500

W111-800

Laser Power:

200W

500W

800W

Laser Wavelength:

1070nm

Working Mode:

Continuous wave modulation

Beam Quality:

1.1

1.1

1.15

Output Power Stability:

±2%

Welding Line Width:

0.04-0.2mm(Optional)

Cooling:

Air Cooling

Driving:

Precision Lead Screw

Total Power Consumption:

≤2KW

≤3KW

≤4KW

Net Weight:

330Kgs

Shape Size:

92*112*170(cm)

Working Temperatuer:

15℃-35℃

15℃-35℃

15℃-35℃

Main Features

Automatic laser welding machine has a integrating and compacted design, and contains many advantages such as a high power output, stable energy,good quality beams, easy operated and widely applications.
Ceramic converging cavity is imported from The Britain, it is corrosion and high temperature resistant,with a high service life,the life of xenon lamp is more than 8million times.

About Us

ZheJiang TiHi Laser Equipment Co.,ltd is a hightech enterprise which devoted to the researching,producing and selling laser equipments. And our technique team is under the leading of two Doctors who are well -experienced in fiber laser field, and a strong sales team is always ready to provide the most comprehensive pre-sales support and service. Our products mainly include fiber laser marking machine, laser cutting machine and laser welding machine, which are highly used in the scope of industry of hardware, motor fittings, sheet metal cutting, sanitary, garments&leather, glasses,jewelry and so on...

With the superfine laser products, price and services,our company is expanding to international markets. Our company’s slogan is simple:to sell our machines at the most competitive price to our worldwide customers, and provided 24hour well-responsed services after sale. Always higher quality is our forever goal.


  • Place of Origin:  Zhejiang, China
  • Brand Name:  TiHi
  • Model Number:  W111


Technical Parameter for W111

Model No.:

W111-200

W111-500

W111-800

Laser Power:

200W

500W

800W

Laser Wavelength:

1070nm

Working Mode:

Continuous wave modulation

Beam Quality:

1.1

1.1

1.15

Output Power Stability:

±2%

Welding Line Width:

0.04-0.2mm(Optional)

Cooling:

Air Cooling

Driving:

Precision Lead Screw

Total Power Consumption:

≤2KW

≤3KW

≤4KW

Net Weight:

330Kgs

Shape Size:

92*112*170(cm)

Working Temperatuer:

15℃-35℃

15℃-35℃

15℃-35℃
