- Place of Origin: Zhejiang, China
- Brand Name: TiHi
- Model Number: M101
- :
- :
- :
- :
- :
- :
- :
- :
- :
Product Description
Widely used in the industries of Keyboard, Rubber transparent key, Electronic components, IC, Communications, Sanitary,tools, knife, clock and glasses, jewelry, motor fittings, bag, buttons, kitchen hardware, stainless steel products and so on..
Main Features
1.Integrating and compacted design, with auto focusing system, easy operation.
2.Imported laser isolator to protect laser generator, strengthen stability and service time.
3.Free maintenance, long service time, space saving, and flexible working environment.
4.High efficiency, 2-3 times than traditional marking machine.
5.High conversion, total power consumption is no more than 50W
6. Flexible and convenient operation system, controlling software compatible with AutoCAD, CorelDraw, Photoshop and other software, can realize the text symbols, graphics, images, bar codes, two dimensional codes, automatically increased serial number, automatic edition and modification.
Technical :
Model No.: | M101-10 | M101-20 | M101-30 |
Laser Power: | 10W | 20W | 30W |
Laser Wavelength: | 1064nm | 1064nm | 1064nm |
Q-Switch Frequency: | 20Khz-100Khz | 20Khz-100Khz | 20Khz-100Khz |
Marking Range: | 70mm*70mm/110mm*110mm/150mm*150mm | ||
Mini Line Width: | 30um | 30um | 30um |
Mini Character: | 0.3mm | 0.3mm | 0.3mm |
Cooling: | Air Cooling | ||
Power Supply: | AC220V2.5A | ||
Total Power Consumption: | <0.5KW | <0.5KW | <0.5KW |
Net Weight: | 85kgs | ||
Shape Size: | 80*62*140(cm) | ||
Working Temperature : | 15℃-35℃ | 15℃-35℃ | 15℃-35℃ |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
About Us
ZheJiang TiHi Laser Equipment Co.,ltd is a hightech enterprise which devoted to the researching,producing and selling laser equipments. And our technique team is under the leading of two Doctors who are well -experienced in fiber laser field, and a strong sales team is always ready to provide the most comprehensive pre-sales support and service. Our products mainly include fiber laser marking machine, laser cutting machine and laser welding machine, which are highly used in the scope of industry of hardware, motor fittings, sheet metal cutting, sanitary, garments&leather, glasses,jewelry and so on...
With the superfine laser products, price and services,our company is expanding to international markets. Our company’s slogan is simple:to sell our machines at the most competitive price to our worldwide customers, and provided 24hour well-responsed services after sale. Always higher quality is our forever goal.
- Place of Origin: Zhejiang, China
- Brand Name: TiHi
- Model Number: M101
- :
- :
- :
- :
- :
- :
- :
- :
- :

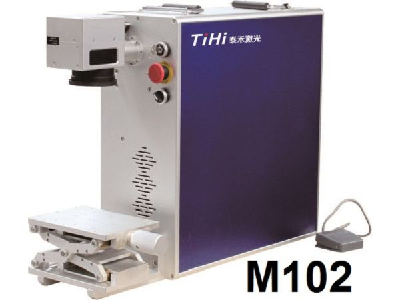

Technical Parameter for M102 | |||
Model No.: | M101-10 | M101-20 | M101-30 |
Laser Power: | 10W | 20W | 30W |
Laser Wavelength: | 1064nm | 1064nm | 1064nm |
Q-Switch Frequency: | 20Khz-100Khz | 20Khz-100Khz | 20Khz-100Khz |
Marking Range: | 70mm*70mm/110mm*110mm/150mm*150mm | ||
Mini Line Width: | 30um | 30um | 30um |
Mini Character: | 0.3mm | 0.3mm | 0.3mm |
Cooling: | Air Cooling | ||
Power Supply: | AC220V2.5A | ||
Total Power Consumption: | <0.5KW | <0.5KW | <0.5KW |
Net Weight: | 85kgs | ||
Shape Size: | 80*62*140(cm) | ||
Working Temperatuer: | 15℃-35℃ | 15℃-35℃ | 15℃-35℃ |
