high laser welding machine

high laser welding machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Ningbo/Shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-01-06
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Zhejiang, China
  • Brand Name:  TiHi
  • Model Number:  W310

Product Description

Product Application

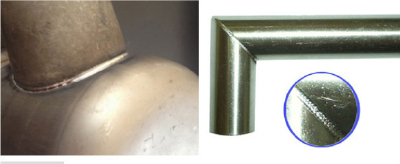

Suitable for welding in steel, stainless steel, zinc, brass, aluminum materials, and widely apply in the industry of sanitary,electronic component, motor fitting(sensor, tappet , nozzle, filter,valve) and Lithium battery.Welding pattern: dot, line, square or any patterns designed by AUTOCAD

Technical Parameter of W310

Model No.:

W310

Laser Power:

200W 500W 800W

Laser Wavelength:

1064nm

Beam Range:

0.3-3mm

Pulse Width:

0.1-20ms

Pulse Frequency:

1-100HZ

Position System:

Red point/CCD

Working table CNC system:

PLC/PC

Working table scale:

200*200mm--300mm*600mm(Optional)

Position Precision:

0.05mm

Repeated Location Accuracy:

±0.02mm

Cooling:

Water Cooling

Working table Bearing Weight:

  100Kgs

Power Comsuption:

4KW 8KW 12KW

Net Weight:

345Kgs

Size Measurement:

135*70*160cm

Working Temperature:

10℃-35℃

About Us

ZheJiang TiHi Laser Equipment Co.,ltd is a hightech enterprise which devoted to the researching,producing and selling laser equipments. And our technique team is under the leading of two Doctors who are well -experienced in fiber laser field, and a strong sales team is always ready to provide the most comprehensive pre-sales support and service. Our products mainly include fiber laser marking machine, laser cutting machine and laser welding machine, which are highly used in the scope of industry of hardware, motor fittings, sheet metal cutting, sanitary, garments&leather, glasses,jewelry and so on...

With the superfine laser products, price and services,our company is expanding to international markets. Our company’s slogan is simple:to sell our machines at the most competitive price to our worldwide customers, and provided 24hour well-responsed services after sale. Always higher quality is our forever goal.


  • Place of Origin:  Zhejiang, China
  • Brand Name:  TiHi
  • Model Number:  W310


Technical Parameter of W310

Model No.:

W310

Laser Power:

200W 500W 800W

Laser Wavelength:

1064nm

Beam Range:

0.3-3mm

Pulse Width:

0.1-20ms

Pulse Frequency:

1-100HZ

Position System:

Red point/CCD

Working table CNC system:

PLC/PC

Working table scale:

200*200mm--300mm*600mm(Optional)

Position Precision:

0.05mm

Repeated Location Accuracy:

±0.02mm

Cooling:

Water Cooling

Working table Bearing Weight:

  100Kgs

Power Comsuption:

4KW 8KW 12KW

Net Weight:

345Kgs

Size Measurement:

135*70*160cm

Working Temperature:

10℃-35℃
